PRODUCT DESCRIPTION

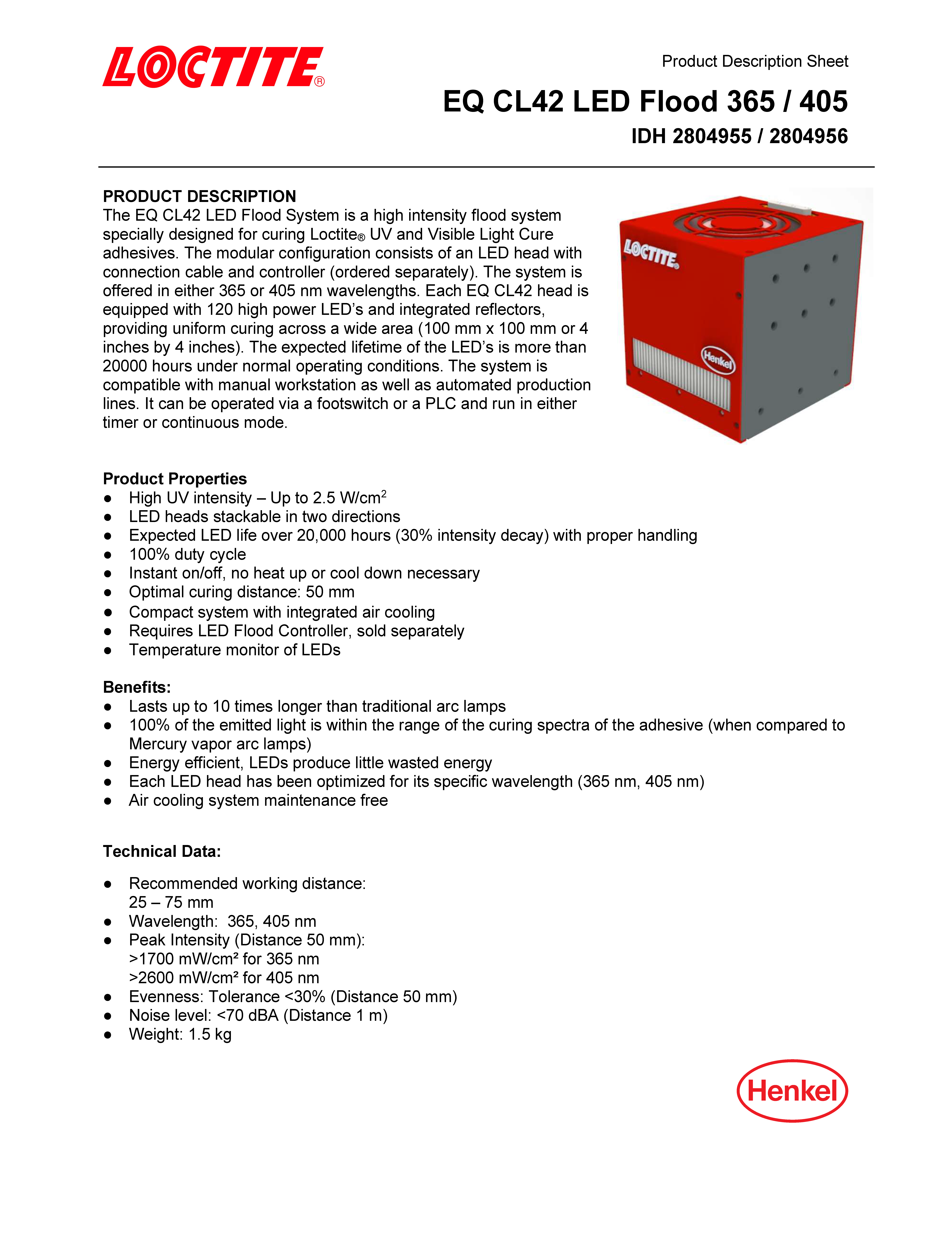

The EQ CL42 LED Flood System is a high intensity flood system specially designed for curing Loctite UV and Visible Light Cure adhesives. The modular configuration consists of an LED head with connection cable and controller (ordered separately). The system is offered in either 365 or 405 nm wavelengths. Each EQ CL42 head is equipped with 120 high power LED’s and integrated reflectors, providing uniform curing across a wide area (100 mm x 100 mm or 4 inches by 4 inches). The expected lifetime of the LED’s is more than 20000 hours under normal operating conditions. The system is compatible with manual workstation as well as automated production lines. It can be operated via a footswitch or a PLC and run in either timer or continuous mode.
